Pressure Difference Transmitter
Now：Home?Products?Pressure Difference Transmitter

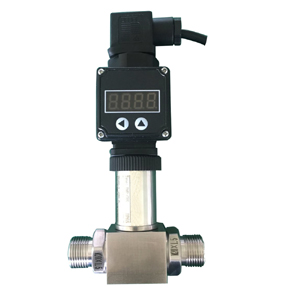

Micro differential pressure transmitter

Model:JDYD
We can provide OEM service
E-mail: pearls@www.gzboss.cn

Product description：

Micro differential pressure transmitter with high accuracy and high stability, double isolation metal diaphragm sensitive chip, chip sensitive stability of double isolation metal diaphragm, the strict temperature compensation and signal amplification, V/I conversion precision, the conversion parameters of pressure difference, flow rate and reliable industrial standard 4-20mA signal output. It can be connected with industrial instrument to realize accurate measurement of pressure difference and liquid level flow in corrosive medium.

Download:JDYD Micro Pressure Transmitter Data

Detail

Product features

1.Minimum measuring range -1bar.

2.Maximum measuring range 0-1000bar.

3.Signal output to PLC program
4.Lightning protection and protection radio frequency interference
5.Small size, beautiful appearance, high cost performance
6.High precision, high stability, high reliability

Technical details

Measuring medium or Application

Liquid,gas or steam etc.

Installation mode

1. Measuring pressure installation: water tank, pipe, other equipment at any position.

Display mode

Can be selected display type and without display type.

Range

-100pa-0-1bar to 0-4000bar

Power supply

24VDC

Accuracy

0.25%F.S

Output signal

4～20mA,0-5V,1-10V,1-5V protocol

Working Temp.

-25～80℃ high temperature can be customized

Environmental Temp.

-20～80℃

Diaphragm material

316L SUS

Process connection

Threaded connection

Protection grade

IP65

weight

0.25kg

Application

Application：Can be widely used in petroleum, chemical, steel, electricity, light industry, environmental protection and other industrial fields, realize the measurement of the pressure, differential pressure, flow and level of industrial process, can be applied to a variety of harsh and dangerous environment and corrosive medium.

Selection considerations

Provided to be some technical details:
1. measuring range
2. measurement medium (liquid and gas specific name)
3. output signal
4. maximum temperature
5. Process connection
